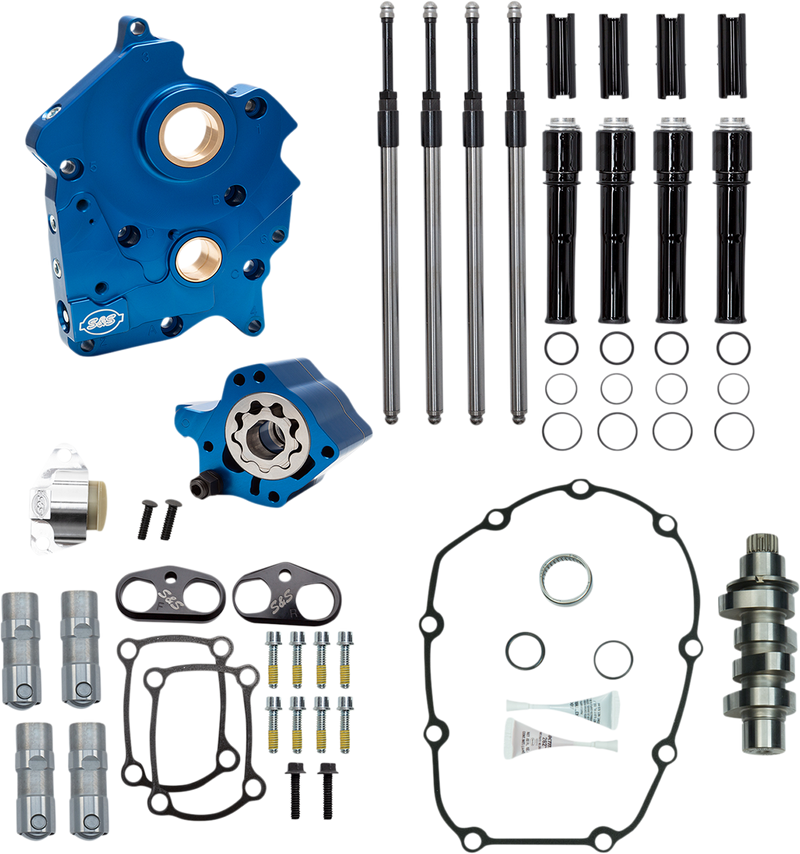

S&S CYCLE Cam Chest Kit - Oil Cooled - Chain Drive - 475 Cam - Black Pushrod Tubes - M8 '17-'26
_small.png?v=24178208168894044801790187383)
Ends 9/7
Features
- Oil pump and cam plate are precision-machined from billet aluminum with a blue anodized finish
- Passage plugs are removable for servicing
- Independent scavenge sections for the flywheel cavity and cam chest
- Debris screens in both scavenge pickups
- Increased oil flow capacity on both the feed and the scavenge sides
- Adjustable pressure relief valve is adjustable with the unit installed in the engine
- S&S premium tappets
- Billet aluminum tappet cuffs have a hard-anodized black coating and are stronger than stock to eliminate distortion and improves tappet stability in high-lift situations
- Made in the USA
Notes
- Includes cam chain tensioner.
- Will fit M8 with VVT.
- 475 is a bolt-in 100 horsepower cam.
Kit Includes:
- Cam Chain Tensioner
- Oil Pump Screw Kit
- 475C Camshaft
- Cam Chain Installation Kit
- Quickee Pushrod Kit with Gloss Black Covers
- Tappet Cuffs Lifter Guide
- 3" S&S® Blue and White Logo Decal
- Cam Plate Support Assembly
- Oil Cooled Oil Pump
- Hydraulic Precision Tappet Set
- 1 oz Torco® Engine Assembly Lube
DISCLAIMER: Not legal for sale or use in California on any pollution controlled motor vehicles.
Specs
| Product Name | Camchest Kit |
| Type | Chain Drive |
| Application | Oil Cooled |
| Grind | 475C |
| Intake Lift | 0.475" |
| Intake Open | 6.2° Front, 2.2° Rear |
| Intake Close | 27.2° Front, 31.2° Rear |
| Intake Duration | 213.5° Front, 213.5° Rear |
| Intake Lift at TDC | 0.107" Front, 0.093" Rear |
| Intake Lobe Centerline | 100.5° Front, 104.5° Rear |
| Exhaust Lift | 0.475" |
| Exhaust Open | 55.5° Front, 52.2° Rear |
| Exhaust Close | 28.5° Front, 20.2° Rear |
| Exhaust Duration | 263.9° Front, 252.5° Rear |
| Exhaust Lift at TDC | 0.208" Front, 0.170" Rear |
| Exhaust Lobe Centerline | 103.5° Front, 106.0° Rear |
| Features | Black Pushrod Tubes |
| Units | Kit |
| Riding Style | Street |
