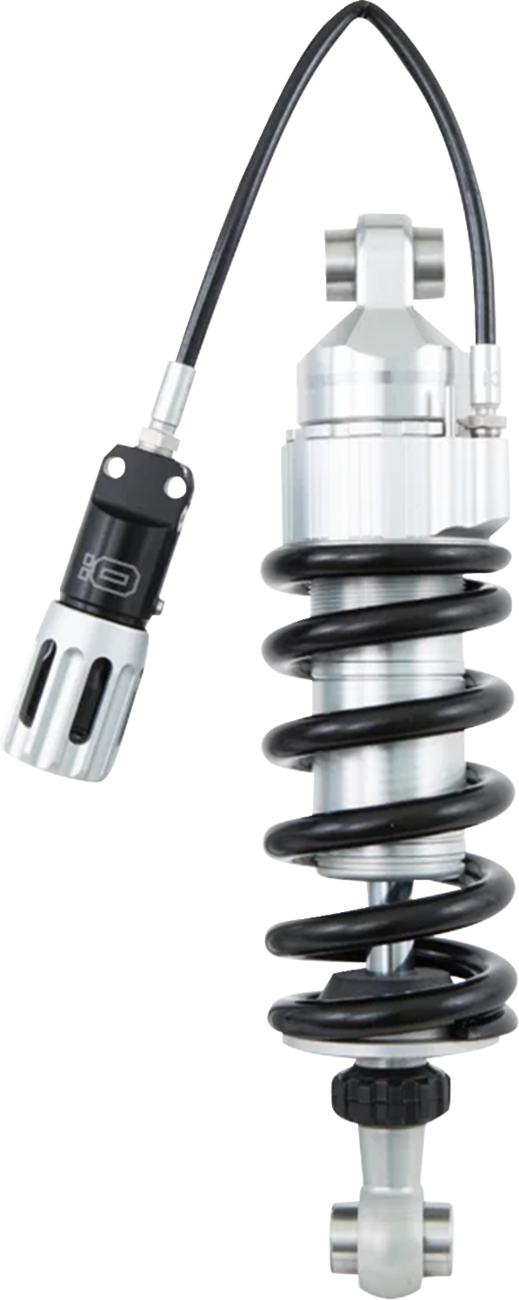

OHLINS Shock - 12.5" - STX Performance - Side Preload - SOFTAIL Street Bob / Low Rider / Slim '18-'25
_small.png?v=24178208168894044801788563850)
Öhlins STX 36 Performance rear shock for 2018-and-later Harley-Davidson Softail, built with the preload adjuster in the side cover so you can set sag without pulling the seat and wrestling a spanner into the frame. Monotube, nitrogen charged, and fully serviceable.
Features
- STX 36 Performance monotube design
- Preload adjuster integrated into the side cover
- High-pressure nitrogen gas charged
- Hard-anodized, precision CNC-machined components
- Low-friction shaft and sealhead design
- Fully serviceable, re-valvable and re-sprung
- Sold individually — one shock per bike
Fitment
| Model | Years |
|---|---|
| FXBB Street Bob 107 | 2018-2020 |
| FXBBS Street Bob 114 | 2021-2024 |
| FXBB Street Bob | 2022, 2025 |
| FLSL Softail Slim 107 | 2018-2021 |
| FXLR Low Rider 107 | 2018-2020 |
| FXLRS Low Rider S 114 | 2020-2021 |
| FXLRS Low Rider S 117 | 2022-2025 |
| FLDE Deluxe 107 | 2018-2020 |
Riding a Fat Boy, Breakout, Sport Glide or FXDR? Those take the standard preload version (HD 513) instead.
Specifications
| Öhlins P/N | HD 514 |
| Model | STX 36 Performance |
| Extended length | 12.618" |
| Stroke length | 1.713" |
| Spring included | Öhlins 21102-36 (B) — 105 N/mm |
| Maximum rider weight | 220 lb (range 150-220 lb) |
| Preload adjuster | Side cover |
| Material | Aluminum |
| Mounting position | Rear |
| Sold as | Each |
