OHLINS Fork Cartridge Kit - Front - NIX 22 - FKS 221 - SOFTAIL Heritage / Deluxe / Breakout / Street Bob '18-'23
_small.png?v=24178208168894044801788563850)

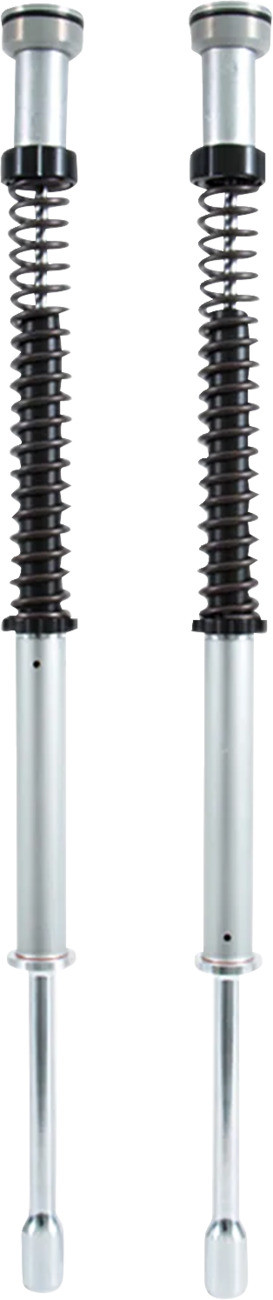

Öhlins NIX 22 front fork cartridge kit for 2018-2023 Harley-Davidson Softail — the broadest Softail fork coverage Öhlins offers. Replaces the damper-rod internals in the stock fork with a real twin-tube cartridge: compression damping in one leg, rebound in the other, both adjustable from the fork cap.
Features
- NIX 22 twin-tube cartridge — compression in one leg, rebound in the other
- Three spring rates included: 9, 10 and 11 N/mm
- Uses the stock fork tubes and lowers — no external change to the bike
- Hard-anodized, precision CNC-machined components
- Fully serviceable and re-valvable
- Sold as a complete kit for both fork legs
Fitment
| Model | Years |
|---|---|
| FLHC Heritage Classic 107 | 2018-2021 |
| FLHCS Heritage Classic 114 | 2018-2023 |
| FLDE Deluxe 107 | 2018-2020 |
| FLSL Softail Slim 107 | 2018-2021 |
| FXBR Breakout 107 / 117 | 2018-2019, 2023 |
| FXBRS Breakout 114 | 2018-2020 |
| FXBB Street Bob 107 / FXBBS Street Bob 114 | 2018-2023 |
| FXLR Low Rider 107 | 2018-2020 |
| FXRST Low Rider El Diablo 117 | 2022 |
Note: does not include the pullup tool or stopper plate — shop-install items your tech will already have.
Specifications
| Öhlins P/N | FKS 221 |
| Model | NIX 22 |
| Length | 30.47" |
| Stroke length | 5.118" |
| Spring rates included | 9 N/mm, 10 N/mm, 11 N/mm |
| Rider weight range | 150-350 lb (rider only — front kit) |
| Sold as | Kit (both fork legs) |
