- Output Power Rating:
150W x 6 @ 4Ω
250W x 6 @ 2Ω
- Bridged @ 4Ω: 3x500W
- Frequency Response: 15Hz - 23kHz
- Input Sensitivity: 0.4-20V
- Signal to Noise Ratio: 85dB
- THD & Noise: ≤0.03%
- Dimensions(L×H×W): 287.5 X 103.3 X 35mm/ 11.32" X 4.07" X 1.38"
- Net Weight: 1.26kg / 2.78lbs

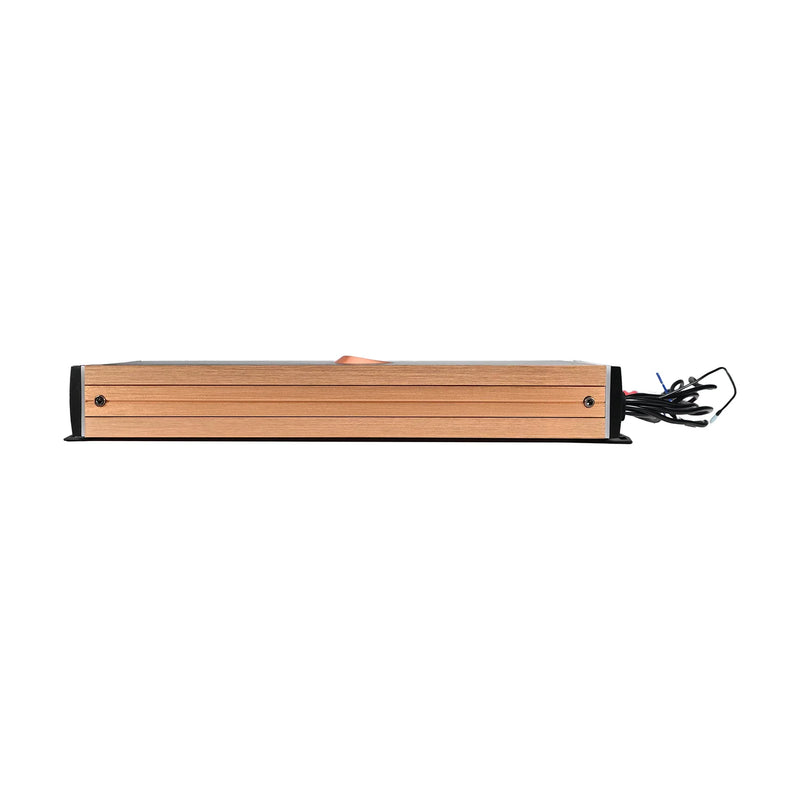

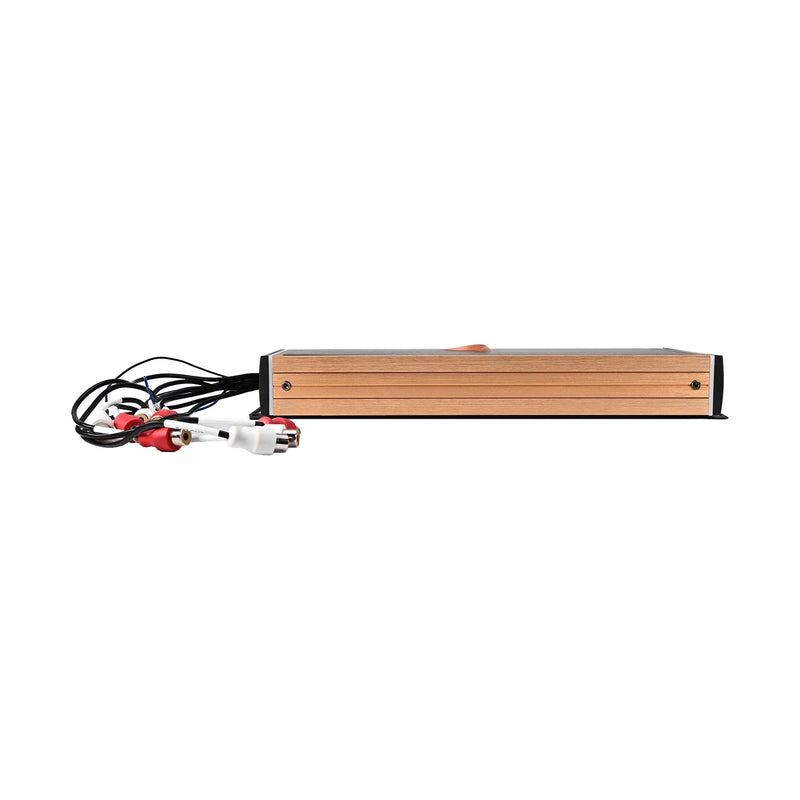

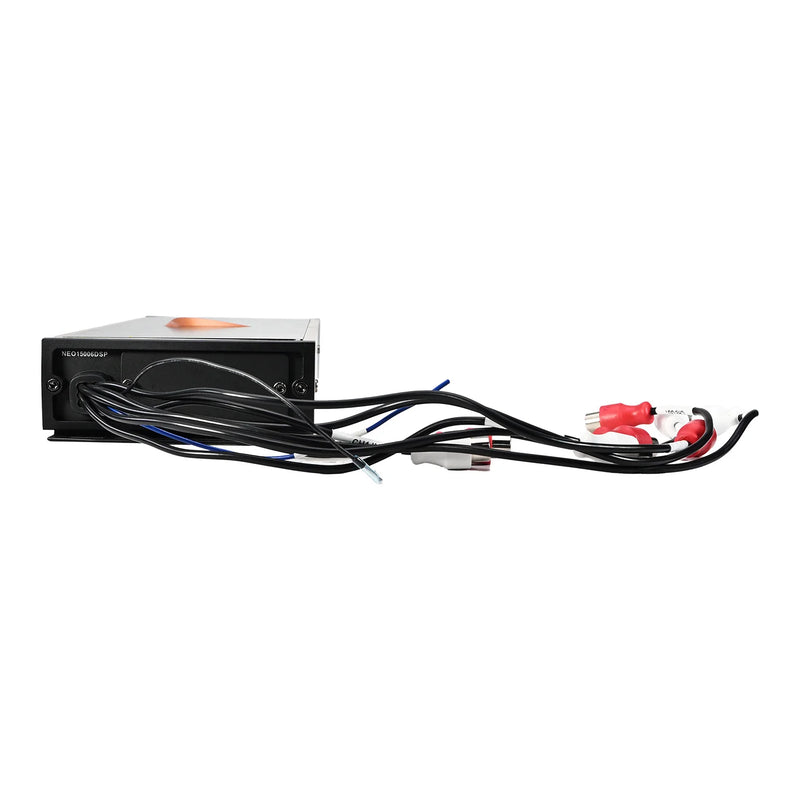

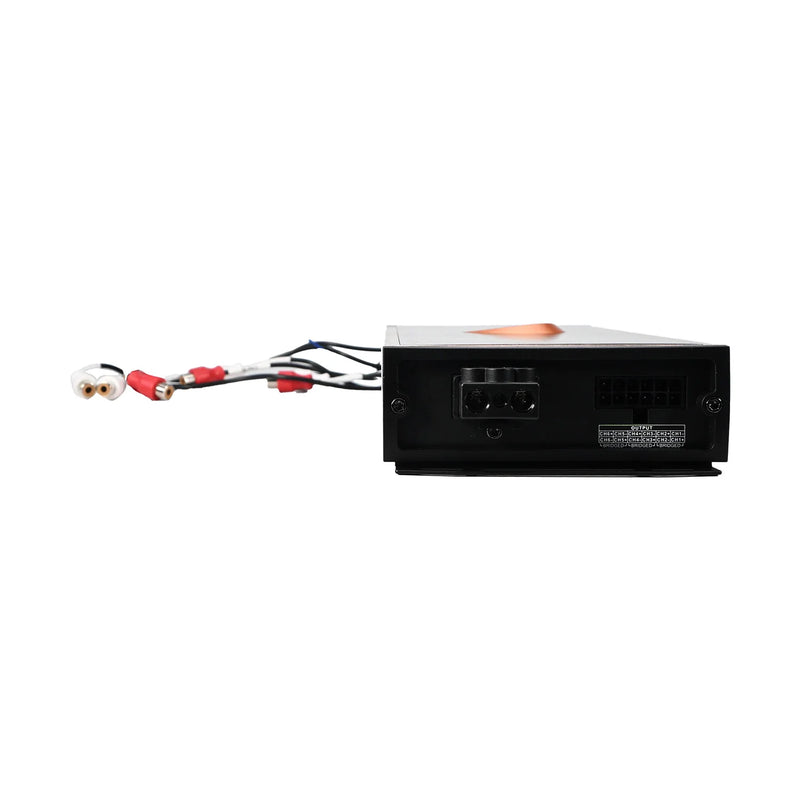

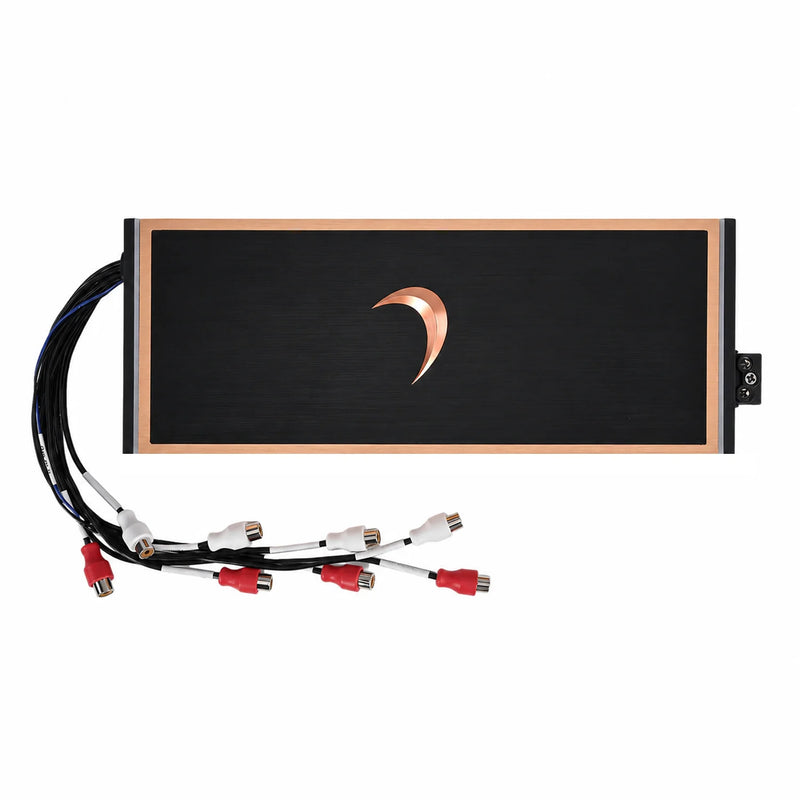

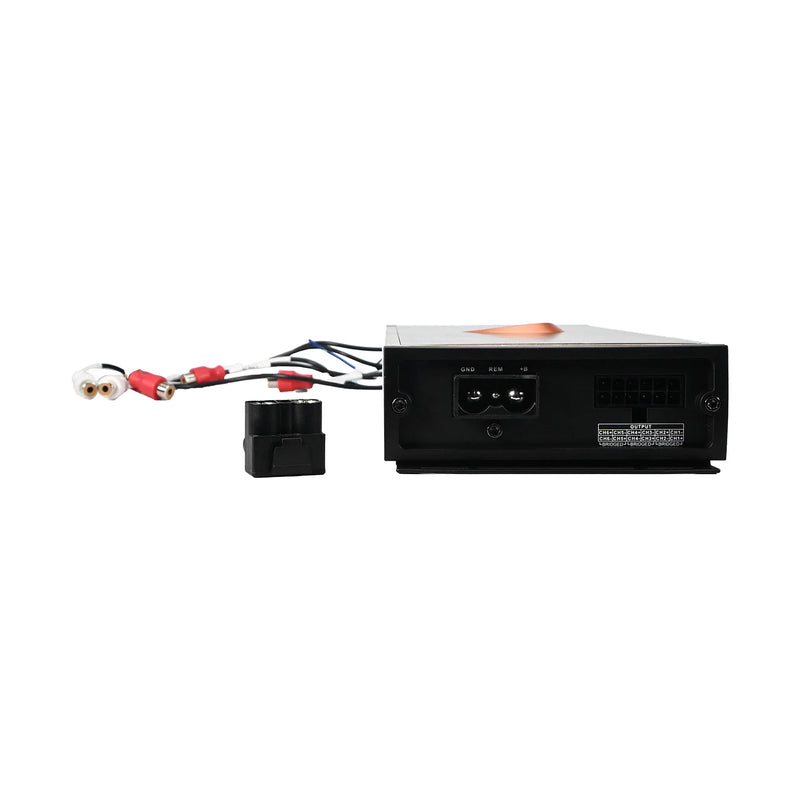

NEO15006DSP - 1500W RMS Class D 6-Channel Amplifier
Extensive System Power Meets Precision Control
The Diamond Audio NEO15006DSP is the ultimate solution for audiophiles seeking the perfect balance of multi-channel flexibility and sophisticated tuning. As a high-efficiency Class D 6-Channel amplifier , it delivers a massive 1500W RMS total output , providing the dependable strength needed to drive complete active systems or high-output multi-speaker setups, with the ability to bridge channels to 500W x 3 @ 4Ω —all while maintaining the pure sonic clarity Diamond Audio is known for.
Advanced Full DSP Integration
Unlike standard multi-channel amplifiers, the NEO15006DSP features an integrated, full-service Digital Signal Processor . With 31 bands of parametric EQ per channel , precise crossovers, time delay , and channel linking, you have total command over every aspect of your soundstage. Whether you are tuning via PC or Android , the NEO Series provides a professional-grade interface to meticulously calibrate complex 6-channel configurations for any acoustic environment.
Seamless OEM & EV Integration
Designed for the modern vehicle landscape, the NEO15006DSP excels in integration. It features high-voltage signal inputs (up to 20V) and selectable on-board load resistors (10Ω - 20kΩ) to interface perfectly with complex factory (OEM) systems . Furthermore, its EV-friendly voltage compatibility (8-17V) ensures stable performance in electric and hybrid vehicles without compromising the vehicle’s electrical integrity.
Versatile & Rugged Engineering
Built to perform in diverse environments, the NEO15006DSP features a marine-ready, water-resistant chassis , making it an ideal choice for high-end car audio, marine, and powersports installations . Despite its expanded 6-channel capability , the compact footprint , staggered RCA connections, and high-current quick-connect power blocks ensure a clean, professional installation in any high-performance audio setup.
Key Features:
- Full DSP integration: 31 band parametric EQS per channel, crossovers, time delay, channel linking, PC or Android programming for advanced tuning and much more
- Easy OEM integration features:
- Up to 20V signal inputs (High/Low level 20V – 0.4V)
- Selectable on-board load resistors (10Ω, 20Ω, 60Ω, 20kΩ)
- EV friendly voltage compatibility (8V – 17V)
- Marine ready, water-resistant chassis
- Staggered RCA connections for clean installations
- High-current quick-connect power block
- NeoDRC1 Diamond Remote Commander compatible (sold separately)
- 2 RCA preamp outputs for system expansion
- Ultra-low distortion (0.05% THD)
TECH NOTE: POWER UP AMPLIFIER FOR PROGRAMMING- SELECT DC POSITION FOR AUTO TURN-ON
