Öhlins STX 36 Performance rear shocks for 1990-2025 Harley-Davidson Touring models. A monotube shock with an internal reservoir and adjustable rebound damping — the step up from a preload-only shock without the cost or the plumbing of a piggyback.
Features
Adjustable rebound damping
Monotube shock with internal reservoir
High-pressure nitrogen gas charged
STX single-tube design, 36 mm / 1.417" piston
Adjustable preload with billet tool
Hard-anodized, precision CNC-machined components
Low-friction shaft and sealhead design
Fully serviceable and repairable
Sold as a pair
Choose your length and spring rate
Length
Spring Rate
Öhlins P/N
Combined rider + passenger weight
Extended length
Stroke

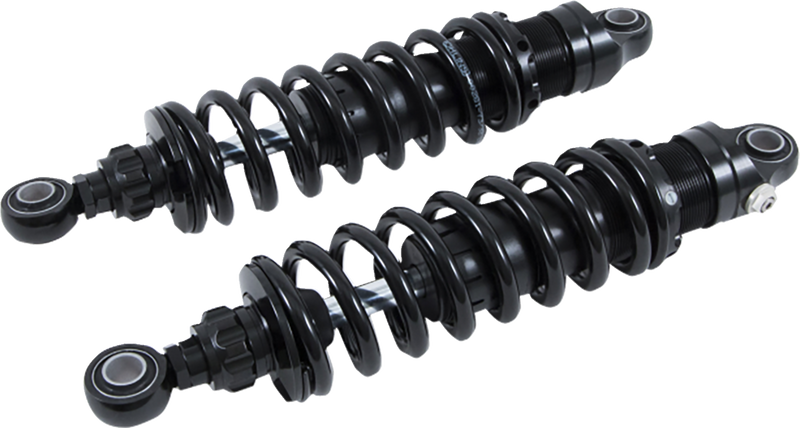

12"
Standard
HD 776
150 lb – 500 lb
12.204"
3.071"

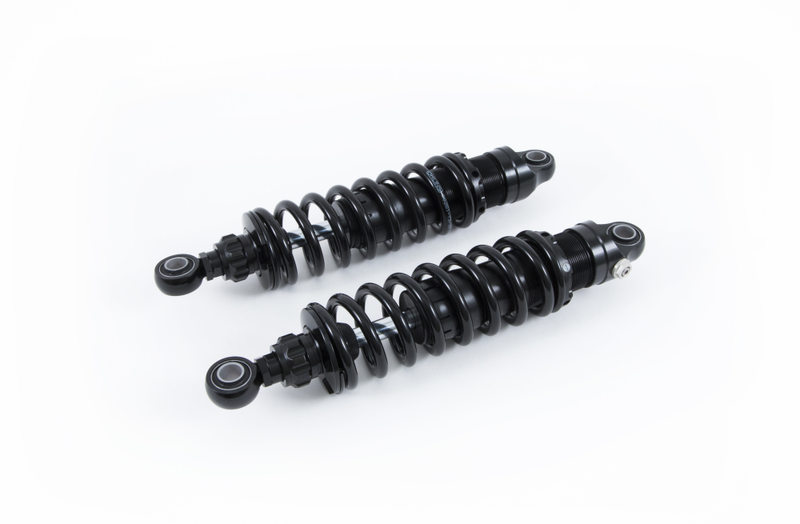

12"
S2 Heavy-Duty
HD 776S2
250 lb – 575 lb
12.244"
3.071"
13"
Standard
HD 772
150 lb – 500 lb
12.952" (±0.196")
3.032"

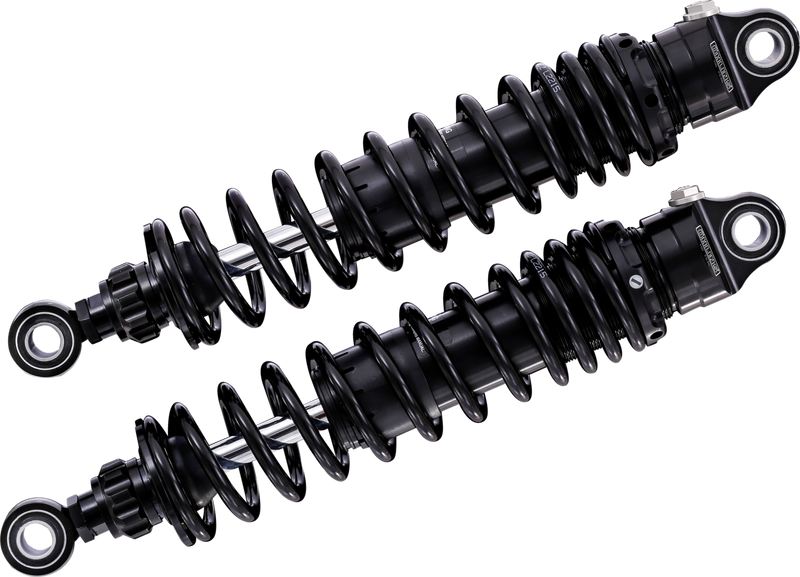

13"
S2 Heavy-Duty
HD 772S2
250 lb – 575 lb
12.952" (±0.196")
3.032"
When to pick the S2 spring
Öhlins sets two rules for the S2 — both have to be true:
The rider is over 250 lb, and
Combined rider + passenger + luggage weight is over 500 lb
If either rule doesn't apply, choose the Standard spring.
