OHLINS Shock Absorber - Fully Adjustable - STX36 Blackline - TOURING '14-'25
_small.png?v=24178208168894044801788563850)
Öhlins STX 36 Pro rear shocks for 2014-2025 Harley-Davidson Touring models. Fully adjustable rebound and compression damping, hose-mounted external reservoirs, and a hard-anodized CNC-machined body that can be serviced and re-valved instead of replaced. Reservoir brackets are included, and both lengths clear a Tour-Pak.
Features
- 36 mm / 1.417" piston diameter
- Adjustable rebound and compression damping
- Length adjustable by 0.393"
- High-pressure nitrogen gas charged
- Adjustable preload with billet tool
- Hard-anodized, CNC-machined components
- Low-friction shaft and sealhead design
- Fully serviceable and repairable
- Sold as a pair — fits with Tour-Pak
Choose your length and spring rate
| Length | Spring Rate | Öhlins P/N | Combined rider + passenger weight | Extended length | Stroke |
|---|---|---|---|---|---|

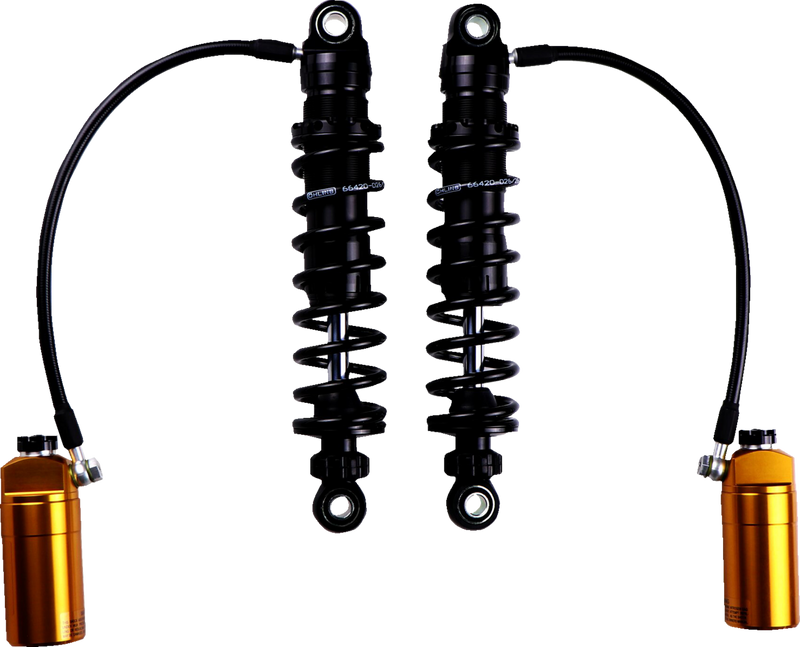

| 12" | Standard | HD 778 | 150 lb – 500 lb | 12.224" | 3.091" |

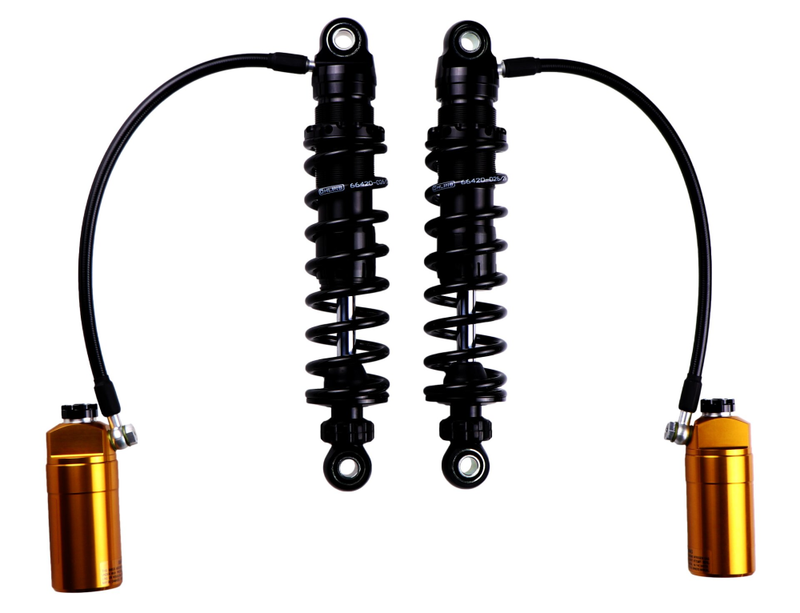

| 12" | S2 Heavy-Duty | HD 778S2 | 250 lb – 575 lb | 12.224" | 3.091" |
| 13" | Standard | HD 779 | 150 lb – 500 lb | 12.933" (±0.196") | 3.406" |

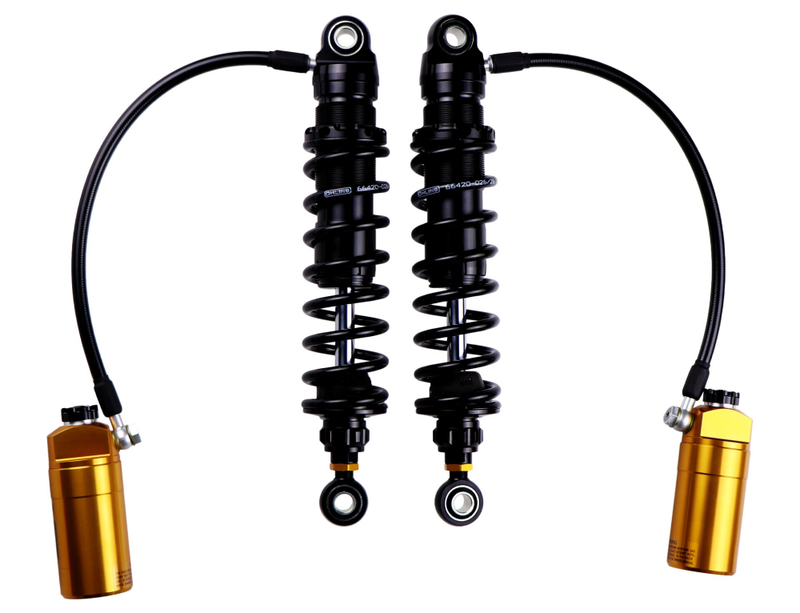

| 13" | S2 Heavy-Duty | HD 779S2 | 250 lb – 575 lb | 12.933" (±0.196") | 3.406" |
When to pick the S2 spring
Öhlins sets two rules for the S2 — both have to be true:
- The rider is over 250 lb, and
- Combined rider + passenger + luggage weight is over 500 lb
If either rule doesn't apply, choose the Standard spring. An S2 on a lighter bike rides harsh and won't sag into its travel properly.
Specifications
| Model | STX 36 Pro |
| Type | Twin shock |
| Reservoir | Hose-mounted external (brackets included) |
| Finish | Black (Blackline) |
| Mounting position | Rear |
| Sold as | Pair |
