OHLINS Twin Shocks - Fully Adjustable - STX36P - DYNA '91-'17
_small.png?v=24178208168894044801788563850)

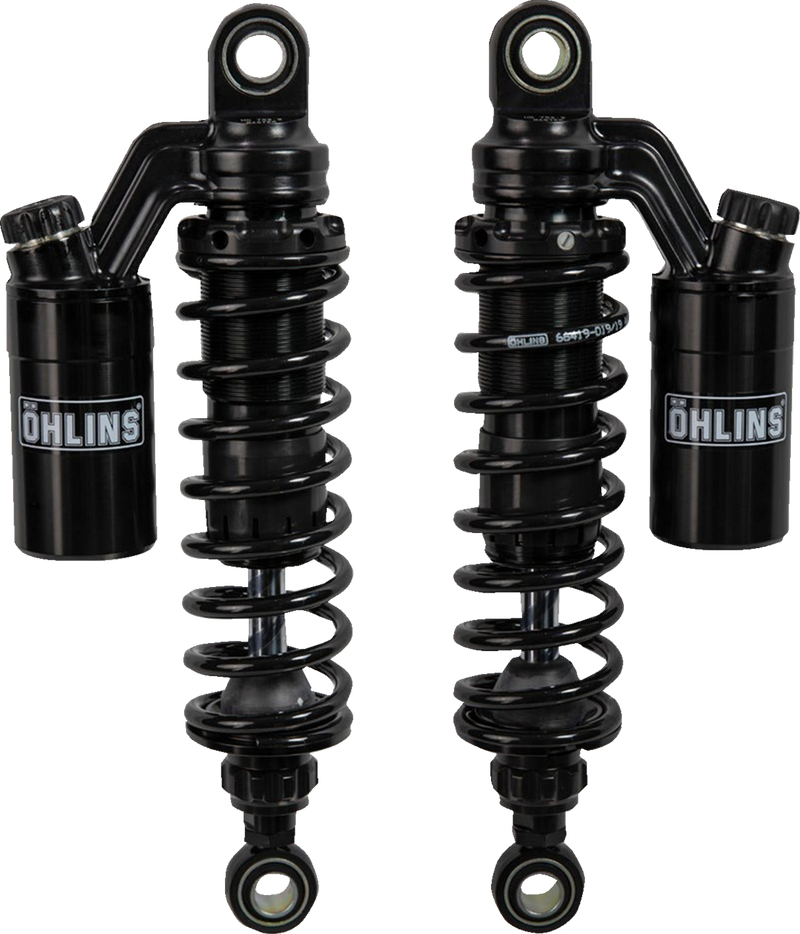

Öhlins STX 36 Pro rear shocks for 1991-2017 Harley-Davidson Dyna models. Piggyback reservoirs and independently adjustable rebound and compression damping — the full-adjustment option for riders who actually dial a bike in rather than set it and forget it.
Features
- Adjustable rebound and compression damping
- Monotube shock with piggyback reservoir
- Length adjustable by 0.393"
- High-pressure nitrogen gas charged
- STX single-tube design, 36 mm / 1.417" piston
- Adjustable preload with billet tool
- Hard-anodized, precision CNC-machined components
- Low-friction shaft and sealhead design
- Fully serviceable and repairable
- Sold as a pair
Choose your length
| Length | Öhlins P/N | Combined rider + passenger weight | Extended length | Stroke |
|---|---|---|---|---|
| 12" | HD 763 | 150 lb – 400 lb | 12.007" | 2.677" |
| 13" | HD 764 | 150 lb – 400 lb | 13.228" (+0.393"/−0) | 3.583" |
Note: both lengths ship with the 32 N/mm spring (Öhlins 66419-032 / 66422-032) and cover a combined weight range of 150–400 lb.
Specifications
| Model | STX 36 Pro |
| Type | Twin shock |
| Reservoir | Piggyback |
| Finish | Black |
| Mounting position | Rear |
| Sold as | Pair |
