FOCAL - 800 Watt FDP SPORT V2 4 channel amp with harness, and bracket
_small.png?v=24178208168894044801780332804)
Comes with "one" of the following brackets
1998-2013 Batwing 23065-F
2014-2013 Batwing 23068-F
2015-2023 Road Glide 23069-F
About the Focal FDP Sport V2
Powerful performance on dirt or the road
This Amp is designed to be Plug N Play for 2014-2013 Street Glides, Road Glides (NON CVO) Models Only.
Other years and other models may need to change some or all wire connections.

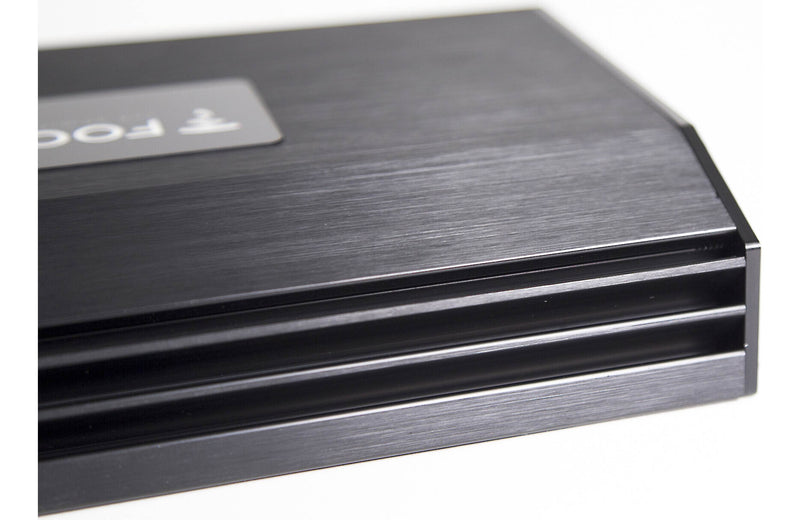

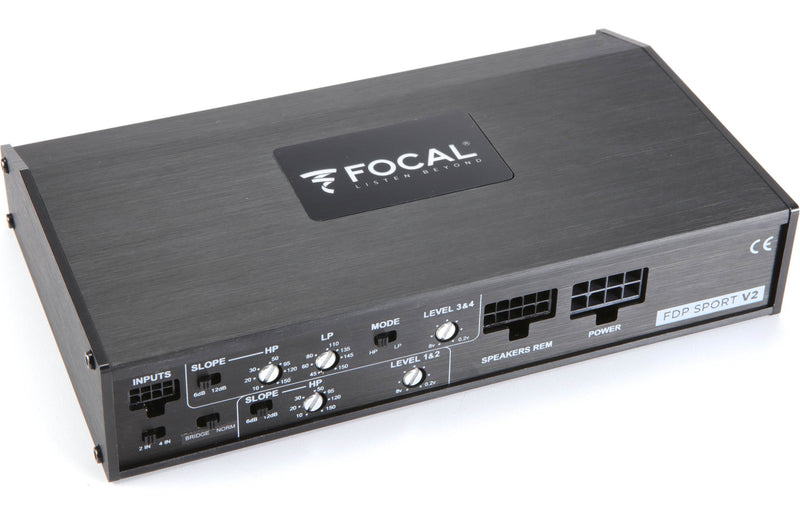

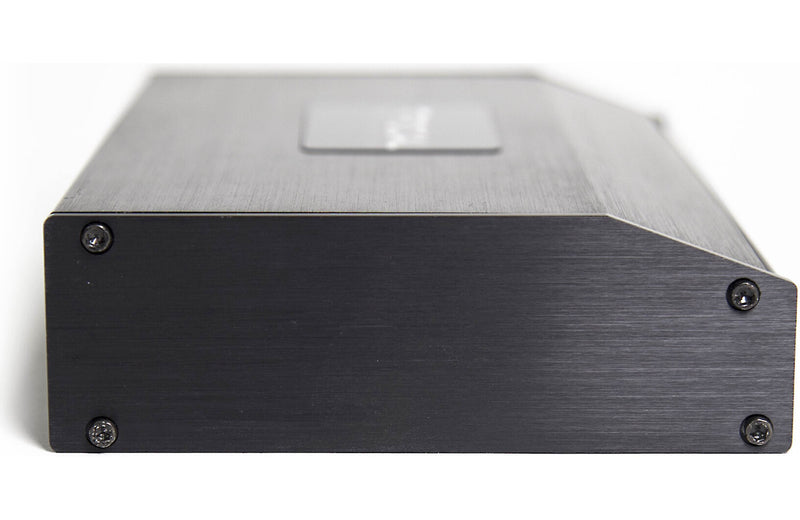

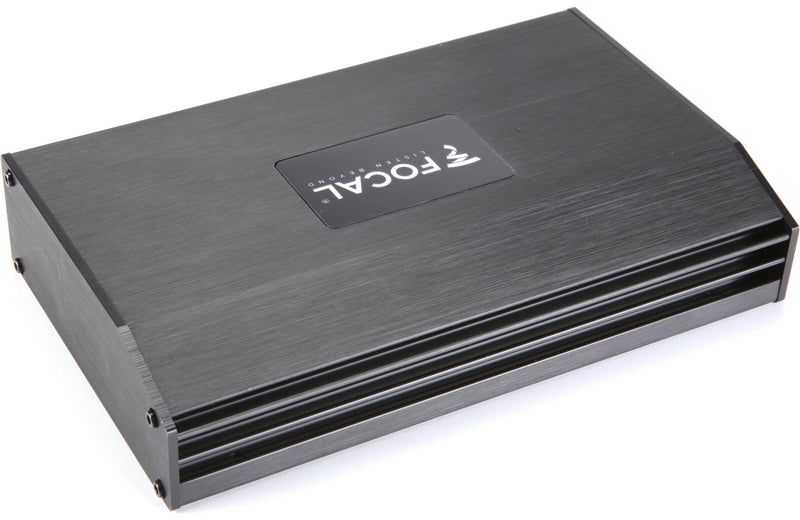

Focal's compact, rugged FDP Sport V2 amplifier brings awesome sound performance to your motorcycle or off-road vehicle. This 4-channel Class D powerhouse is made for life in the outdoors, with a weather-resistant conformal-coated circuit board, a scratch-resistant anodized shell, and thermal overload protection that keeps it from overheating even when it's pushed hard.
Versatile amp
This amazingly small amplifier produces 150 watts RMS per channel in 4-channel mode, which is plenty enough to mask engine and road noise with your good-sounding music. You can also use the amp to power a pair of speakers plus a subwoofer — with up to 400 watts RMS available for the sub out of bridged channels. Crossover filters, tunable for each system configuration, along with an anti-hard clipping circuit, protect your speakers against potentially damaging distortion.
Comes with the connectors you need

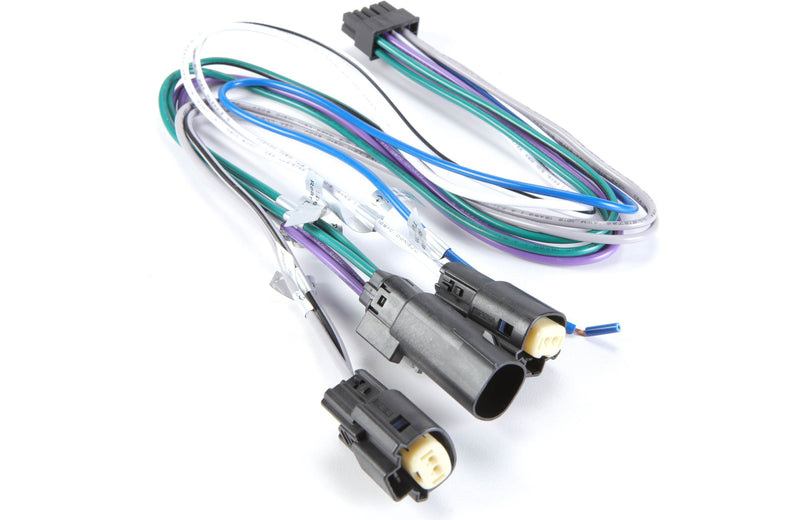

The package includes Molex input and output harnesses for Harley-Davidson installations, plus power and ground cables that're long enough to reach the battery in almost any bike or ATV installation. A 4-channel RCA input harness is included to accommodate other custom installs. Adjustable mounting feet give you multiple mounting options for different vehicles.
Product highlights:
- compact all-weather 4-channel amplifier
- 150 watts RMS x 4 at 4 ohm
- 200 watts RMS x 4 at 2 ohm
- 400 watts RMS x 2 bridged at 4 ohms
- CEA-2006 compliant
- designed and engineered in California, USA
- full-range Class D amp technology
- frequency response 10-30K Hz; signal-to-noise ratio: 95 dB
- Ch 1&2: variable high-pass filter (10-150 Hz, 6 or 12 dB/octave)
- Ch 3&4: variable high-pass, low-pass, and bandpass filters
- high-pass: 10-150 Hz, 6 or 12 dB/octave; low-pass: 45-150 Hz, 12 dB/octave
Other Info:
- conformal-coated circuit boards
- dual-rail power supply prevents overheating
- adjustable mounting feet give you 2 mounting options
- preamp and speaker-level inputs (0.3-16V)
- input/output harnesses for Harley-Davidson Molex plugs included
- RCA input harness included
- 5-foot power and ground cables included for motorcycle mounting
- 8-gauge power and ground wires recommended
- fuse rating: 25A x 2
- dimensions: 8-3/8"W x 1-5/8"H x 5-7/8"D
- warranty: 1 year

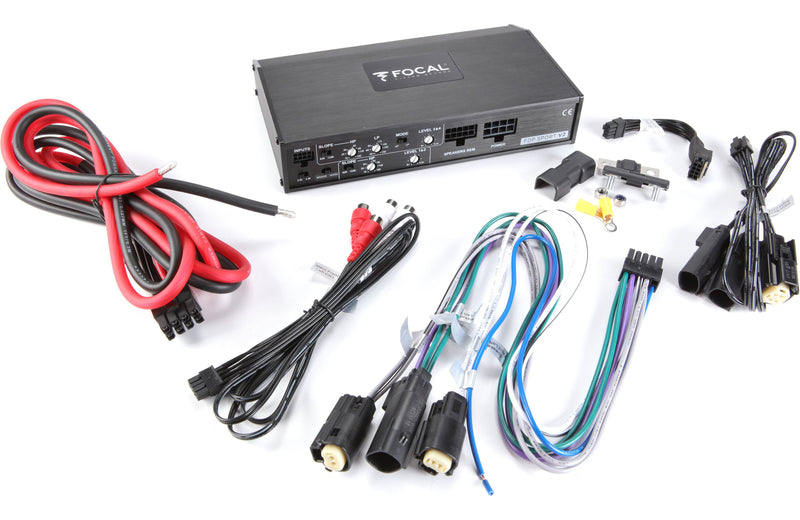

What's in the box:
Focal FDP Sport V2 owner's manual
- 4-Channel amplifier
- Two 25A ATO fuses (installed inside the chassis)

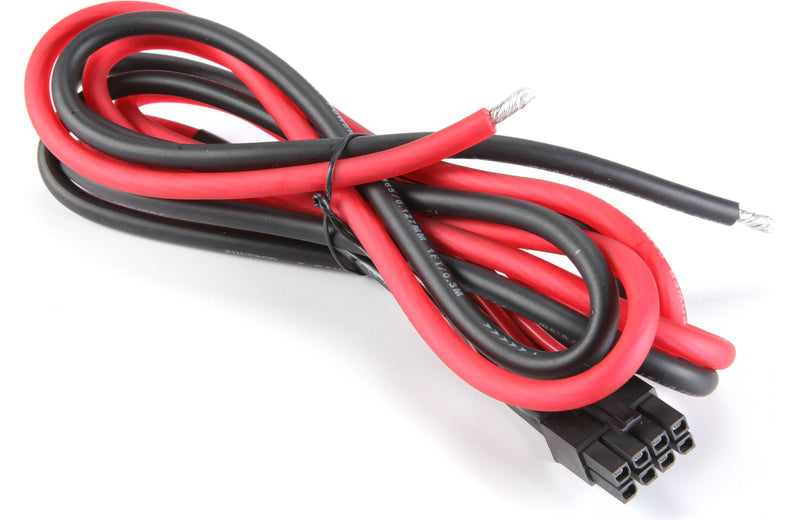

- 64" Power harness

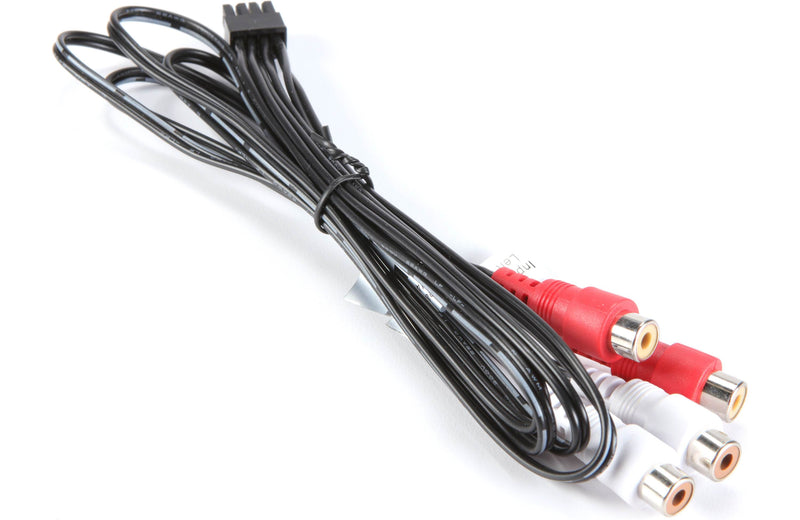

- 18" RCA input harness

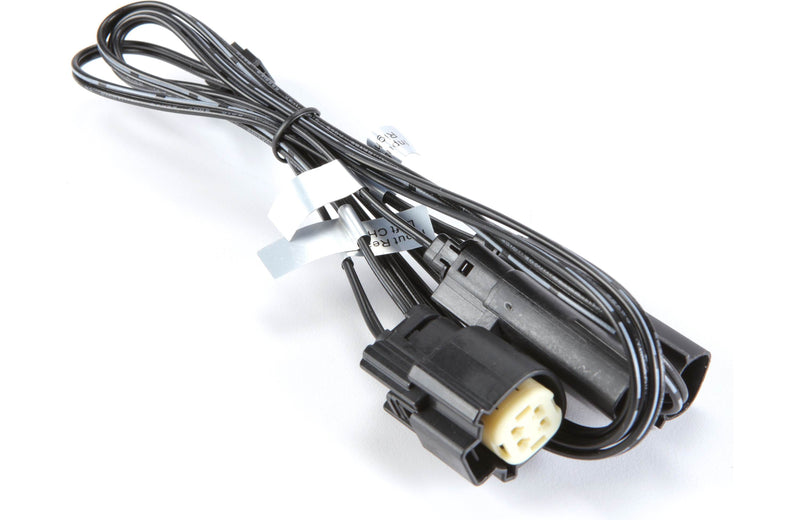

- 18" Speaker input harness
- 18" Speaker output harness

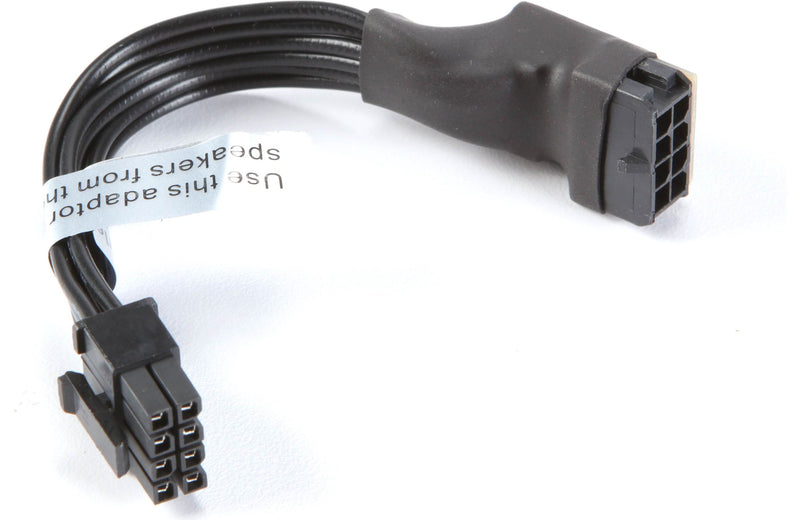

- Harley-Davidson 2-speaker input adapter

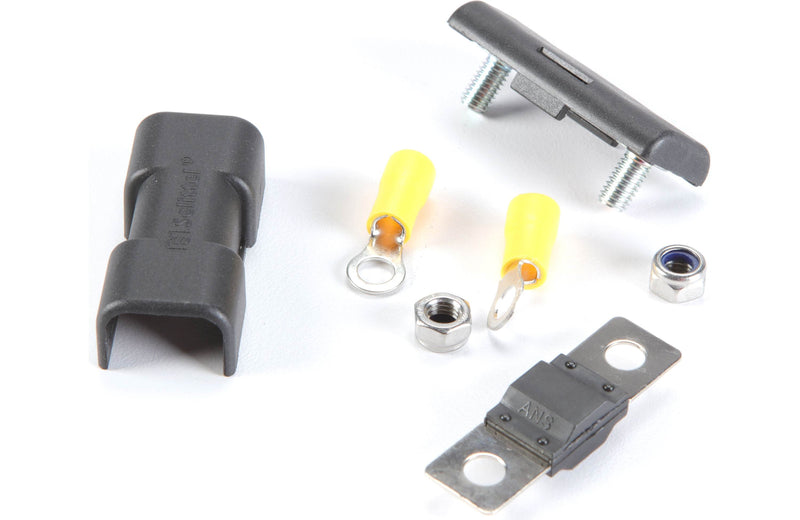

- In-line fuse holder
- One 50-amp fuse
- Two locknuts
- 2 Ring terminals
- 2.5mm Hex key
- 4 Mounting brackets
- Four M5x6mm Machine screws
- Four countersunk M3x4mm Machine screws
- Four 1" Screws
- Four rubber flat washers
- Operation manual
- Wiring information note
