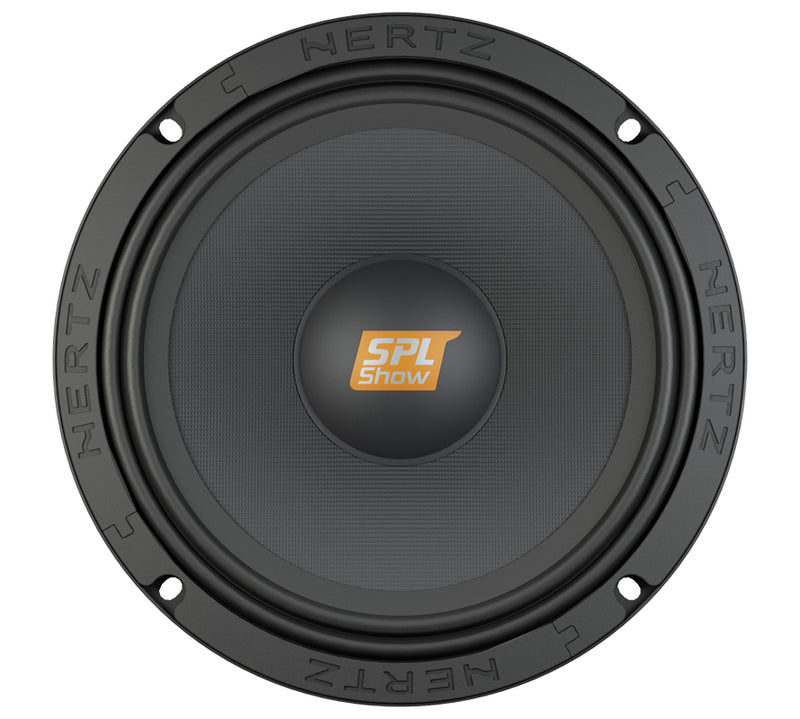

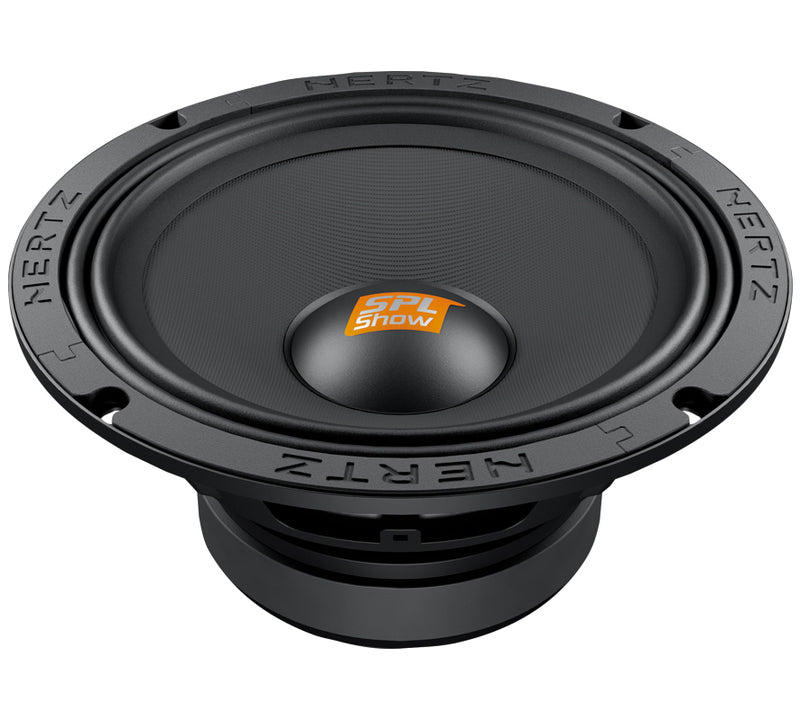

HERTZ SV 200.1 - 200 (8) mm (in.) | Spl Midrange | 500 W | 4 Ohm
Features:
The SV 200.1 car audio midrange is the 200 mm (8 in.) midrange designed for SPL competitions. Like the SX subwoofers, the SV 200.1 features a solid, robust structure and, like all the other SPL Show components, it employs a copper voice coil wound on a two-layer KSV former, for unheard-of thermal and mechanical capability also in extreme circumstances. The cone features a water repellent pressed paper membrane and paper dust caps, both robust and light weight, as well as double-wave damped fabric surrounds to ensure linearity even under extreme conditions, contributing to high SPL scores.
| Component | SPL Midrange |
| Size mm (in.) | 200 (8) |
| Power Handling - Continuous W | 200 |
| Power Handling - Peak W | 500 |
| Impedance Ohm | 4 |
| Voice Coil Ø | 38 (1.5) |
| Frequency Response Hz | 100 ÷ 9k |
| Magnet size D x d x h mm (in.) | 80 x 50 x 6 (3.15 x 1.97 x 0.24) |
| Weight of one speaker kg (lb.) | 1,2 (2.65) |
| Magnet | High density flux ferrite |
| Cone | Ultra light pressed paper |
| D mm | 168 |
| Xmax mm | 1,5 |
| Re Ohm | 3,3 |
| Fs Hz | 120 |
| Le mH | 0,06 |
| Vas I | 7,5 |
| Mms g | 16,5 |
| Cms mm/N | 0,12 |
| BL T*m | 8,8 |
| Qts | 0,52 |
| Qes | 0,55 |
| Qms | 7,4 |
| Spl dB | 100 |
| A | 208 mm | 8.19 in. |
| B | 182,7 mm | 7.19 in. |
| C | 96,2 mm | 3.79 in. |
| D | 83,8 mm | 3.3 in. |
