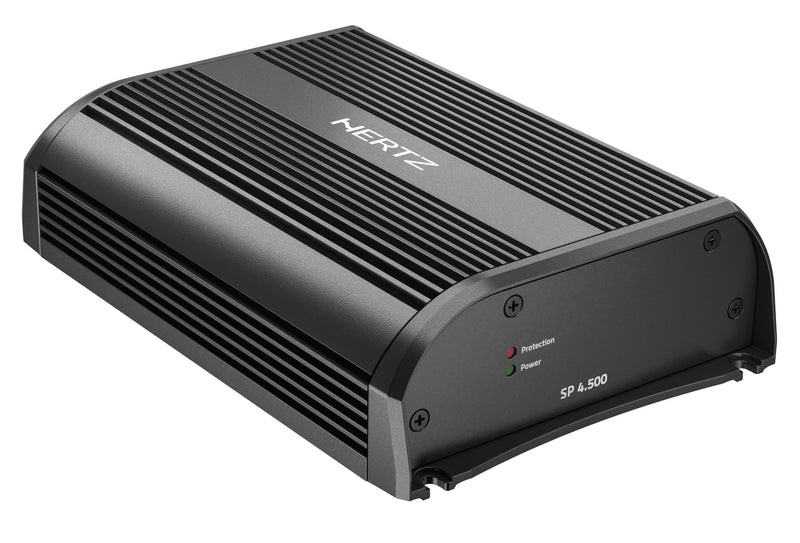

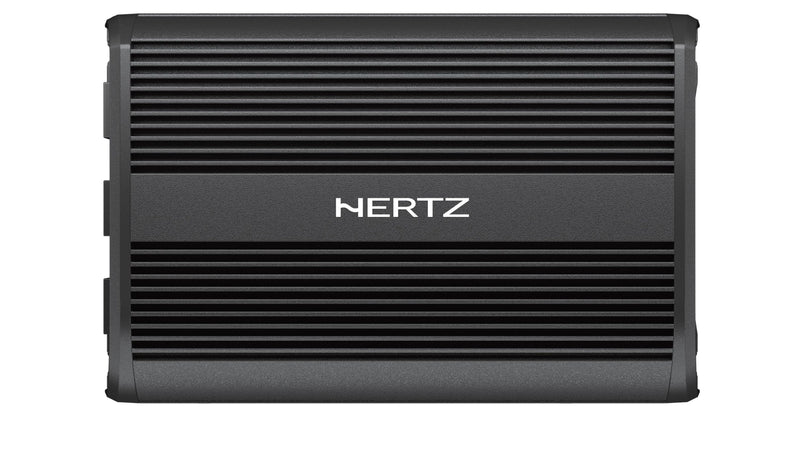

HERTZ SP 4.500 Amplifier Harley Touring
_small.png?v=24178208168894044801761686708)
SP 4.500 features Hertz ADC (Advanced D-Class) output stage, reaching up to 87% efficiency and delivering an impressive power rating of 90 x 4 (4Ω) W RMS or 300 W x 2 (4Ω) W RMS when bridged, with an ultra-compact size of 192.7 (7.58) x 130 (5.1) mm (in.) x 49 (1.9). Being ultra-compact with impressive power, SP 4.500 is the ideal choice for Motorcycle applications and for under-seat in sports cars and behind-seat installations in trucks.
- Up to 87% efficiency thanks to ADC (Advanced D-Class) output stage.
- USS (Universal Speakers Simulators) allows SP 4.500 to work with head units featuring the “speaker load detection” circuit.
- 90 W RMS x 4 (4Ω) with ultra-compact size: 192.7 x 130 x 49 / 7.59 x 5.12 x 1.93 (mm/inch)
- IP55 aluminum chassis for maximum protection against humidity and external agents.
- No cooling fan to prevent internal accumulation of dirt.
- Sealed power cord, line inputs and speaker outputs to prevent oxidation.

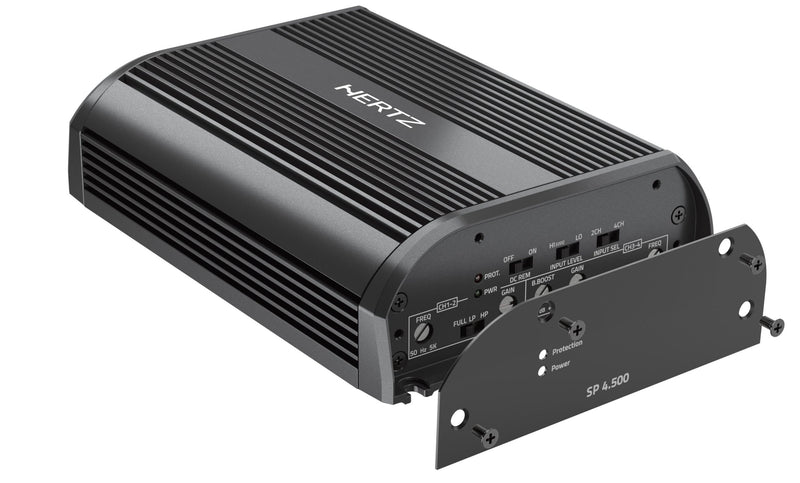

- Crossover filters and controls on a single side to facilitate calibration when the product is installed.
- Balanced fully-differential high-noise rejection inputs.
- ART (Automatic Remote Turn-On/Off) automatically turns on/off the amplifier when the OEM head-unit turns on/off (can be enabled/disabled).
| Channels | 4 - 3 - 2 |
| Nominal power supply voltage | 11 ÷ 15 VDC |
| Pulse Operating voltage | 6 ÷ 16 VDC |
| Idling current | 0.9 A |
| Idling current when off | 0.03 mA |
| Consumption @ 14.4 VDC, MIN load impedance (Max Musical Power) | 27 A |
| Remote IN | 6 ÷ 15 VDC (9 mA) |
| DC-REM - Remote Turn on by SPK DC from OUTPUT BTL speakers | 3.5 ÷ 7 VDC |
| Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power | <0.02% |
| Damping factor @ 1 kHz, 4Ω, 2 VRMS | >150 |
| Bandwidth @ -3 dB | 10 Hz ÷ 35 kHz |
| S/N ratio (A weighted @ 1 V Input) | 100 dBA |
| Pre-In sensitivity | 0.6 ÷ 6 VRMS |
| Speaker-In sensitivity | 2.2 ÷ 22 VRMS |
| Minimum load impedance: | |
| @ 4Ch | 2Ω |
| @ 3Ch | 2Ω + 2Ω + 4Ω |
| @ 2Ch | 4Ω |
| IP Rating | IP55 |
| Operating Temperature Range | 0°C (32°F) to 55°C (131°F) |
| Max size (mm/inch) | 192.7 x 130 x 49 / 7.58 x 4.18 x 1.9 |
| Weight (kg/lbs) | 2.15 / 4.74 |
| Adjustable Crossovers | yes |
