FEULING OIL PUMP CORP. Econo Beehive® Valve Spring Kit - TI Retainers - For 5/16" Valve Stem - EVO / Twin Cam

Econo Beehive® Valve Spring Kit - TI Retainers - For 5/16" Valve Stem - EVO / Twin Cam

• Made from heat treated chromoly conical ovate wire
• Hand measured and labeled specifically based on their coil bing / required open height
• Uses a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion
• Dyno proven and track tested

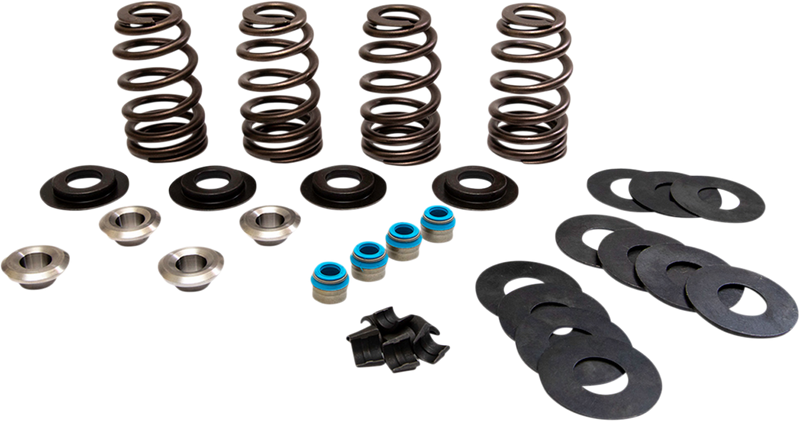

• Kit includes: Econo BeeHive® valve springs, lightweight 7° steel or titanium retainers, machined heat-treated chromoly spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with spring-loaded valve stem wiper system
• Up to 0.585" lift
• Made in the USA

Seat lb / installed height:

• 183 lb @ 1.760" (0.510" lift)
• 175 lb @ 1.785" (0.535" lift)
• 172 lb @ 1.803" (0.553" lift)
• 165 lb @ 1.825" (0.574" lift)
• 163 lb @ 1.835" (0.585" lift)
• 380 lb @ 1.250" Open Height
• Coil Bind @ 1.180"

Notes

• Feuling® BeeHive® valve springs must be installed at the correct open height, matching max lift to the open height spec of the valve springs.
• Econo BeeHive® kit is direct replacement with no machining or rocker box clearance required for cams up to 0.574" lift for '84-'04 Big Twin and '86-'03 XL and up to .585" lift for '05-'17 Twin Cam.

2003 Buell XB9S Lightning
2003 Buell XB9S Lightning Low
2002-2003 Buell XB9R Firebolt
2002-2003 Harley-Davidson 883 Roadster XLR
2002-2003 Harley-Davidson 1200 XLCP
2002-2003 Harley-Davidson 1200 Custom EFI XLC
2002-2003 Harley-Davidson 883 Roadster EFI XLR
2002 Buell X1W White Lightning
2001-2002 Buell M2 Cyclone Low
2000-2003 Buell Blast 500
1999-2003 Buell X1 Lightning
1999-2003 Harley-Davidson 883 Custom EFI XLC
1998-2003 Harley-Davidson 883 Custom XLC
1998 Buell S1 White Lightning
1997-2002 Buell S3T Thunderbolt
1997-2002 Buell M2 Cyclone
1997-2002 Buell S3 Thunderbolt
1996-2003 Harley-Davidson 1200 Sport XLS
1996-2003 Harley-Davidson 1200 Custom XLC
1996-1998 Buell S1 Lightning
1995-1996 Buell S2T Thunderbolt
1995 Buell S2 Thunderbolt
1988-2003 Harley-Davidson Sportster 1200 XLH
1987-2003 Harley-Davidson 883 Hugger XLH
1986-2003 Harley-Davidson Sportster 883 XLH
1986-1995 Harley-Davidson 883 Deluxe XLH
1986-1988 Harley-Davidson Sportster 1100 XLH
